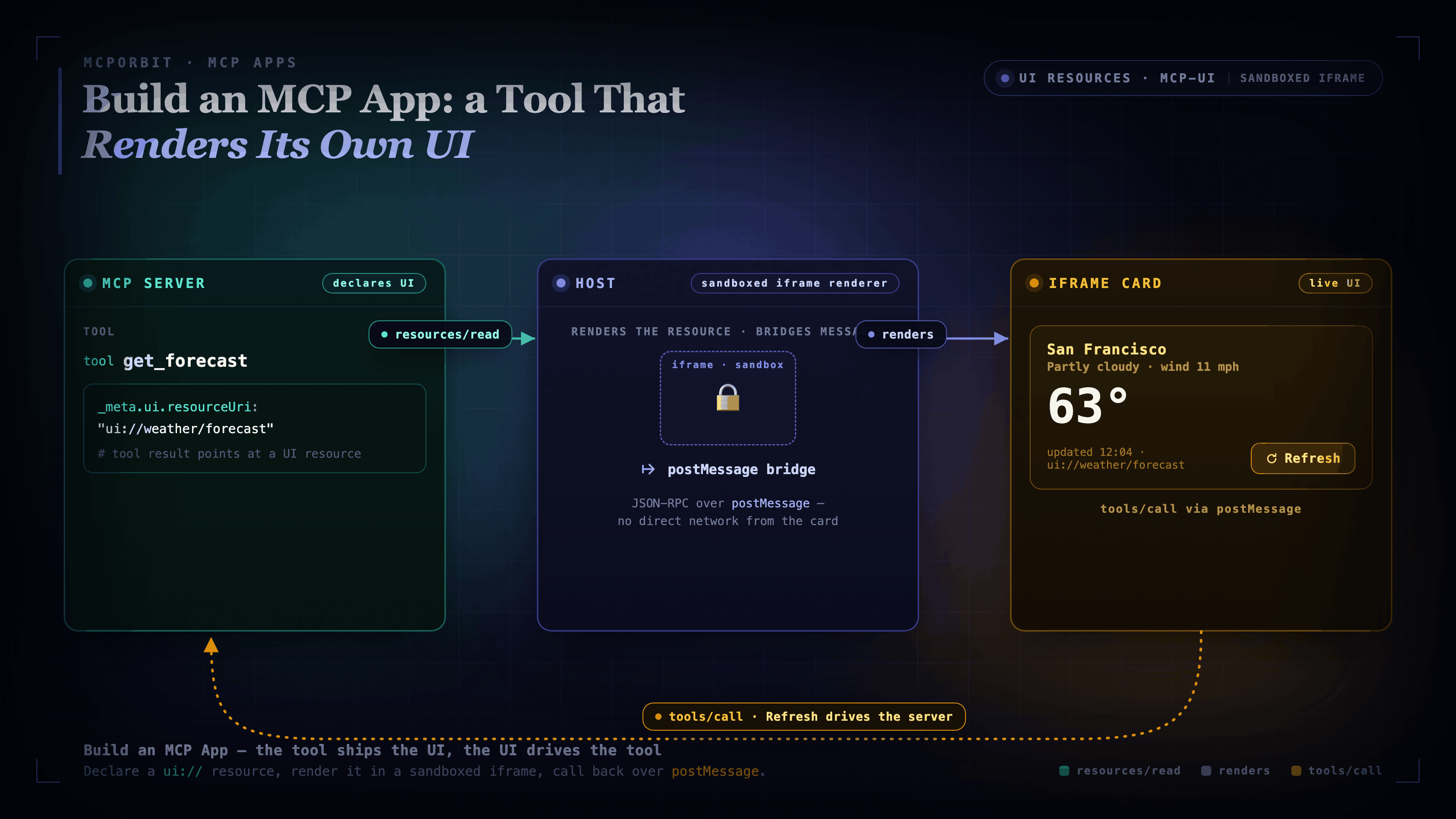

Build an MCP server that renders its own UI (MCP Apps extension)

npm install @modelcontextprotocol/[email protected] @modelcontextprotocol/[email protected] express cors
npm install -D typescript vite vite-plugin-singlefile tsx concurrently cross-env @types/express @types/cors @types/node

import { registerAppResource, registerAppTool, RESOURCE_MIME_TYPE } from '@modelcontextprotocol/ext-apps/server';
import { McpServer } from '@modelcontextprotocol/sdk/server/mcp.js';
import { StreamableHTTPServerTransport } from '@modelcontextprotocol/sdk/server/streamableHttp.js';
import fs from 'node:fs/promises';

const RESOURCE_URI = 'ui://weather/forecast';

// Pass RESOURCE_URI twice: once as the name, once as the URI.
// This is the SDK pattern: the resource identifier is the same as the URI.
registerAppResource(
  server,
  RESOURCE_URI,
  RESOURCE_URI,
  { mimeType: RESOURCE_MIME_TYPE },
  async () => {
    const html = await fs.readFile(UI_HTML, 'utf-8'); // single-file Vite bundle
    return {
      contents: [{ uri: RESOURCE_URI, mimeType: RESOURCE_MIME_TYPE, text: html }],
    };
  }
);

import { z } from 'zod';

registerAppTool(
  server,
  'get_forecast',
  {
    title: 'Get Weather Forecast',
    description: 'Returns a mock weather forecast for a city.',
    inputSchema: z.object({ city: z.string() }),
    _meta: { ui: { resourceUri: RESOURCE_URI } }, // links tool to UI resource
  },
  async ({ city }) => ({
    content: [{
      type: 'text',
      text: JSON.stringify({ city, temp_c: 9, condition: 'Clear', source: 'mock' }),
    }],
  })
);

// ui/index.html <script type="module">
import { App } from '@modelcontextprotocol/ext-apps';

const app = new App({ name: 'Weather Forecast App', version: '1.0.0' });

// The host calls this when the tool result arrives, and again after each
// UI-driven tools/call completes.
app.ontoolresult = (result) => {
  const text = result.content?.find((c) => c.type === 'text')?.text ?? '{}';
  const data = JSON.parse(text);
  cityEl.textContent = data.city;
  tempEl.textContent = `${data.temp_c}\u00b0C`;
  conditionEl.textContent = data.condition;
};

// The Refresh button drives a tools/call back over postMessage to the MCP server,
// relayed through the host. No direct network call from the iframe.
refreshBtn.addEventListener('click', async () => {
  const result = await app.callServerTool({ name: 'get_forecast', arguments: { city: lastCity } });
  app.ontoolresult(result);
});

// ui/initialize -> ui/notifications/initialized handshake.
// The host will not route messages until this completes.
await app.connect();

--- initialize handshake: complete ---

--- tools/list (get_forecast) ---
{
  "name": "get_forecast",
  "description": "Returns a mock weather forecast for a city.",
  "_meta": {
    "ui": {
      "resourceUri": "ui://weather/forecast"
    },
    "ui/resourceUri": "ui://weather/forecast"
  }
}

--- resources/list ---
[{"uri":"ui://weather/forecast","mimeType":"text/html;profile=mcp-app"}]

--- resources/read ui://weather/forecast ---
mimeType: text/html;profile=mcp-app
html length: 324482 chars (single-file Vite bundle)

--- tools/call get_forecast({city:"London"}) ---
{"city":"London","temp_c":9,"condition":"Clear","source":"mock"}

--- tools/call get_forecast({city:"Tokyo"}) ---
{"city":"Tokyo","temp_c":27,"condition":"Clear","source":"mock"}

--- tools/call get_forecast({city:"London"}) [repeat: determinism check] ---
temp_c matches: true | condition matches: true

# In a new, empty folder, create every file below at the path shown, then:
npm install
npm test        # 5/5 tests pass
npm run demo    # builds the UI bundle, starts the server, prints the wire trace

{
  "name": "mcp-app-example",
  "version": "1.0.0",
  "description": "Minimal MCP server that renders its own UI using the MCP Apps extension (SEP-1865).",
  "type": "module",
  "scripts": {
    "build": "tsc && vite build",
    "dev": "concurrently \"npm run build:watch\" \"npm run server:dev\"",
    "build:watch": "vite build --watch",
    "server:dev": "cross-env NODE_ENV=development tsx watch src/server.ts",
    "start": "npm run build && node dist/server.js",
    "demo": "npm run build && concurrently \"node dist/server.js\" \"node dist/host.js\"",
    "test": "node --test dist/server.test.js"
  },
  "dependencies": {
    "@modelcontextprotocol/ext-apps": "1.7.4",
    "@modelcontextprotocol/sdk": "1.29.0",
    "express": "^4.18.0",
    "cors": "^2.8.5"
  },
  "devDependencies": {
    "typescript": "^5.9.0",
    "vite": "^5.0.0",
    "vite-plugin-singlefile": "^2.0.0",
    "@types/express": "^4.17.0",
    "@types/cors": "^2.8.0",
    "@types/node": "^20.0.0",
    "tsx": "^4.0.0",
    "concurrently": "^8.0.0",
    "cross-env": "^7.0.0"
  }
}

{
  "compilerOptions": {
    "target": "ES2022",
    "module": "NodeNext",
    "moduleResolution": "NodeNext",
    "outDir": "dist",
    "rootDir": "src",
    "strict": true,
    "esModuleInterop": true,
    "skipLibCheck": true
  },
  "include": ["src/**/*.ts"],
  "exclude": ["node_modules", "ui"]
}

import { defineConfig } from "vite";
import { viteSingleFile } from "vite-plugin-singlefile";

export default defineConfig({
  plugins: [viteSingleFile()],
  root: "ui",
  build: {
    outDir: "../dist/ui",
    emptyOutDir: true,
  },
});

import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";
import { StreamableHTTPServerTransport } from "@modelcontextprotocol/sdk/server/streamableHttp.js";
import {
  registerAppResource,
  registerAppTool,
  RESOURCE_MIME_TYPE,
} from "@modelcontextprotocol/ext-apps/server";
import { z } from "zod";
import express from "express";
import cors from "cors";
import fs from "node:fs/promises";
import path from "node:path";
import { fileURLToPath } from "node:url";

const __dirname = path.dirname(fileURLToPath(import.meta.url));
const UI_HTML = path.join(__dirname, "..", "dist", "ui", "index.html");
const RESOURCE_URI = "ui://weather/forecast";
const PORT = Number(process.env.PORT ?? 3000);

const app = express();
app.use(cors());
app.use(express.json());

// One transport per session (stateless Streamable HTTP).
app.all("/mcp", async (req, res) => {
  const server = buildMcpServer();
  const transport = new StreamableHTTPServerTransport({
    sessionIdGenerator: undefined, // stateless: any replica can serve any request
  });
  await server.connect(transport);
  await transport.handleRequest(req, res, req.body);
  res.on("close", () => server.close());
});

function buildMcpServer(): McpServer {
  const server = new McpServer({ name: "weather-mcp-app", version: "1.0.0" });

  // Register the UI resource, predeclared so the host can prefetch and security-review
  // it before any tool runs. Returns the single-file HTML bundle built by Vite.
  registerAppResource(
    server,
    RESOURCE_URI,
    RESOURCE_URI,
    { mimeType: RESOURCE_MIME_TYPE },
    async () => {
      const html = await fs.readFile(UI_HTML, "utf-8");
      return {
        contents: [{ uri: RESOURCE_URI, mimeType: RESOURCE_MIME_TYPE, text: html }],
      };
    }
  );

  // Register the tool that references the UI resource via _meta.ui.resourceUri.
  // The host renders the iframe when this tool runs and passes the result to the view.
  registerAppTool(
    server,
    "get_forecast",
    {
      title: "Get Weather Forecast",
      description: "Returns a mock weather forecast for a city.",
      inputSchema: z.object({ city: z.string().describe("City name") }),
      _meta: { ui: { resourceUri: RESOURCE_URI } },
    },
    async ({ city }) => {
      // Deterministic mock: same city always returns the same forecast so tests
      // can assert exact values without live network calls.
      const hash = [...city].reduce((h, c) => (h * 31 + c.charCodeAt(0)) | 0, 0);
      const temps = [18, 21, 24, 27, 14, 9, 15];
      const conditions = ["Sunny", "Partly cloudy", "Overcast", "Light rain", "Clear", "Windy", "Thunderstorms"];
      const temp = temps[Math.abs(hash) % temps.length];
      const condition = conditions[Math.abs(hash + 1) % conditions.length];
      return {
        content: [
          {
            type: "text",
            text: JSON.stringify({ city, temp_c: temp, condition, source: "mock" }),
          },
        ],
      };
    }
  );

  return server;
}

app.listen(PORT, () => {
  console.log(`MCP App server listening on http://localhost:${PORT}/mcp`);
});

/**
 * Demo client (host stand-in) for the weather MCP App server.
 * Run: node dist/host.js  (npm run demo boots the server, then runs this)
 *
 * Connects over Streamable HTTP, runs the MCP handshake, and prints a real
 * wire trace: tools/list, resources/list, resources/read, and three tools/call
 * round trips including a determinism check. Nothing here is mocked.
 */
import { Client } from "@modelcontextprotocol/sdk/client/index.js";
import { StreamableHTTPClientTransport } from "@modelcontextprotocol/sdk/client/streamableHttp.js";

const URL = new URL(process.env.MCP_URL ?? "http://localhost:3000/mcp");
const RESOURCE_URI = "ui://weather/forecast";

// The demo starts the server and this client concurrently, so the first
// connect can race the listen. Retry briefly until the server is up.
async function connect(): Promise<Client> {
  const client = new Client({ name: "demo-host", version: "1.0.0" });
  for (let attempt = 1; ; attempt++) {
    try {
      await client.connect(new StreamableHTTPClientTransport(URL));
      return client;
    } catch (err) {
      if (attempt >= 20) throw err;
      await new Promise((r) => setTimeout(r, 250));
    }
  }
}

async function callForecast(client: Client, city: string) {
  const res = await client.callTool({ name: "get_forecast", arguments: { city } });
  const text = (res.content as any[]).find((c) => c.type === "text")?.text ?? "{}";
  return JSON.parse(text);
}

async function main() {
  const client = await connect();
  console.log("--- initialize handshake: complete ---\n");

  const { tools } = await client.listTools();
  const forecast = tools.find((t) => t.name === "get_forecast");
  console.log("--- tools/list (get_forecast) ---");
  console.log(
    JSON.stringify(
      {
        name: forecast?.name,
        description: forecast?.description,
        _meta: (forecast as any)?._meta,
      },
      null,
      2
    ) + "\n"
  );

  const { resources } = await client.listResources();
  console.log("--- resources/list ---");
  console.log(
    JSON.stringify(resources.map((r) => ({ uri: r.uri, mimeType: r.mimeType }))) + "\n"
  );

  const read = await client.readResource({ uri: RESOURCE_URI });
  const first = read.contents[0] as any;
  console.log(`--- resources/read ${RESOURCE_URI} ---`);
  console.log(`mimeType: ${first.mimeType}`);
  console.log(`html length: ${String(first.text ?? "").length} chars (single-file Vite bundle)\n`);

  const london = await callForecast(client, "London");
  console.log(`--- tools/call get_forecast({city:"London"}) ---`);
  console.log(JSON.stringify(london) + "\n");

  const tokyo = await callForecast(client, "Tokyo");
  console.log(`--- tools/call get_forecast({city:"Tokyo"}) ---`);
  console.log(JSON.stringify(tokyo) + "\n");

  const londonAgain = await callForecast(client, "London");
  console.log(`--- tools/call get_forecast({city:"London"}) [repeat: determinism check] ---`);
  console.log(
    `temp_c matches: ${londonAgain.temp_c === london.temp_c} | condition matches: ${londonAgain.condition === london.condition}`
  );

  await client.close();
  process.exit(0);
}

main().catch((err) => {
  console.error(err);
  process.exit(1);
});

/**
 * Tests for the weather MCP App server.
 * Run: node --test dist/server.test.js
 *
 * We test the MCP protocol layer directly via the in-process SDK client,
 * so no running HTTP server or browser is required.
 */
import { describe, it, before, after } from "node:test";
import assert from "node:assert/strict";
import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";
import { Client } from "@modelcontextprotocol/sdk/client/index.js";
import { InMemoryTransport } from "@modelcontextprotocol/sdk/inMemory.js";
import {
  registerAppResource,
  registerAppTool,
  RESOURCE_MIME_TYPE,
  RESOURCE_URI_META_KEY,
} from "@modelcontextprotocol/ext-apps/server";
import { z } from "zod";

// Build a minimal server identical to the real one, but returns inline HTML
// so we don't need a Vite build for testing.
function buildTestServer(): McpServer {
  const server = new McpServer({ name: "weather-mcp-app", version: "1.0.0" });
  const RESOURCE_URI = "ui://weather/forecast";

  registerAppResource(
    server,
    RESOURCE_URI,
    RESOURCE_URI,
    { mimeType: RESOURCE_MIME_TYPE },
    async () => ({
      contents: [
        { uri: RESOURCE_URI, mimeType: RESOURCE_MIME_TYPE, text: "<html>test ui</html>" },
      ],
    })
  );

  registerAppTool(
    server,
    "get_forecast",
    {
      title: "Get Weather Forecast",
      description: "Returns a mock weather forecast for a city.",
      inputSchema: z.object({ city: z.string() }),
      _meta: { ui: { resourceUri: RESOURCE_URI } },
    },
    async ({ city }) => {
      const hash = [...city].reduce((h, c) => (h * 31 + c.charCodeAt(0)) | 0, 0);
      const temps = [18, 21, 24, 27, 14, 9, 15];
      const conditions = ["Sunny", "Partly cloudy", "Overcast", "Light rain", "Clear", "Windy", "Thunderstorms"];
      return {
        content: [
          {
            type: "text",
            text: JSON.stringify({
              city,
              temp_c: temps[Math.abs(hash) % temps.length],
              condition: conditions[Math.abs(hash + 1) % conditions.length],
              source: "mock",
            }),
          },
        ],
      };
    }
  );

  return server;
}

let client: Client;
let server: McpServer;

before(async () => {
  server = buildTestServer();
  client = new Client({ name: "test-client", version: "1.0.0" });
  const [clientTransport, serverTransport] = InMemoryTransport.createLinkedPair();
  await server.connect(serverTransport);
  await client.connect(clientTransport);
});

after(async () => {
  await client.close();
  await server.close();
});

describe("MCP App server", () => {
  it("lists get_forecast tool with _meta.ui.resourceUri", async () => {
    const { tools } = await client.listTools();
    const tool = tools.find((t) => t.name === "get_forecast");
    assert.ok(tool, "get_forecast tool should be listed");
    const meta = (tool as any)._meta ?? {};
    assert.ok(
      meta?.ui?.resourceUri === "ui://weather/forecast",
      `expected _meta.ui.resourceUri = 'ui://weather/forecast', got ${JSON.stringify(meta)}`
    );
  });

  it("lists the ui://weather/forecast resource", async () => {
    const { resources } = await client.listResources();
    const res = resources.find((r) => r.uri === "ui://weather/forecast" || r.name === "ui://weather/forecast");
    assert.ok(res, "ui://weather/forecast resource should be listed");
    assert.equal(res.mimeType, RESOURCE_MIME_TYPE);
  });

  it("reads the UI resource and returns HTML with the correct MIME type", async () => {
    const { contents } = await client.readResource({ uri: "ui://weather/forecast" });
    assert.ok(contents.length > 0);
    const item = contents[0] as any;
    assert.equal(item.mimeType, RESOURCE_MIME_TYPE);
    assert.ok(typeof item.text === "string" && item.text.includes("<html>"));
  });

  it("calls get_forecast and returns deterministic JSON for 'London'", async () => {
    const result = await client.callTool({ name: "get_forecast", arguments: { city: "London" } });
    const text = (result.content as any[]).find((c) => c.type === "text")?.text ?? "";
    const data = JSON.parse(text);
    assert.equal(data.city, "London");
    assert.equal(typeof data.temp_c, "number");
    assert.ok(typeof data.condition === "string" && data.condition.length > 0);
    assert.equal(data.source, "mock");
    // Same city must return same values (deterministic).
    const result2 = await client.callTool({ name: "get_forecast", arguments: { city: "London" } });
    const data2 = JSON.parse((result2.content as any[]).find((c) => c.type === "text")?.text ?? "{}");
    assert.equal(data2.temp_c, data.temp_c);
    assert.equal(data2.condition, data.condition);
  });

  it("different cities return different forecasts", async () => {
    const r1 = await client.callTool({ name: "get_forecast", arguments: { city: "London" } });
    const r2 = await client.callTool({ name: "get_forecast", arguments: { city: "Tokyo" } });
    const d1 = JSON.parse((r1.content as any[]).find((c) => c.type === "text")?.text ?? "{}");
    const d2 = JSON.parse((r2.content as any[]).find((c) => c.type === "text")?.text ?? "{}");
    // At least one field differs for different city names.
    assert.ok(d1.city !== d2.city || d1.temp_c !== d2.temp_c || d1.condition !== d2.condition);
  });
});

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <title>Weather Forecast</title>
  <style>
    body {
      font-family: system-ui, sans-serif;
      background: #0f172a;
      color: #f1f5f9;
      margin: 0;
      padding: 1.5rem;
      min-height: 100vh;
      display: flex;
      flex-direction: column;
      gap: 1rem;
    }
    #status { font-size: 0.875rem; color: #94a3b8; min-height: 1.25rem; }
    #card {
      background: #1e293b;
      border: 1px solid #334155;
      border-radius: 0.75rem;
      padding: 1.5rem;
      display: none;
    }
    #card.visible { display: block; }
    #city { font-size: 1.25rem; font-weight: 600; margin-bottom: 0.25rem; }
    #temp { font-size: 2.5rem; font-weight: 700; color: #38bdf8; }
    #condition { color: #94a3b8; margin-top: 0.25rem; }
    button {
      background: #0ea5e9;
      color: white;
      border: none;
      border-radius: 0.5rem;
      padding: 0.6rem 1.2rem;
      font-size: 0.9rem;
      cursor: pointer;
      align-self: flex-start;
    }
    button:hover { background: #0284c7; }
    button:disabled { background: #334155; cursor: default; }
  </style>
</head>
<body>
  <div id="status">Connecting to host...</div>
  <div id="card">
    <div id="city"></div>
    <div id="temp"></div>
    <div id="condition"></div>
  </div>
  <button id="refresh" disabled>Refresh</button>
  <script type="module">
    import { App } from "@modelcontextprotocol/ext-apps";

    const statusEl = document.getElementById("status");
    const cardEl = document.getElementById("card");
    const cityEl = document.getElementById("city");
    const tempEl = document.getElementById("temp");
    const conditionEl = document.getElementById("condition");
    const refreshBtn = document.getElementById("refresh");

    // Extract city from initial tool result delivered by the host.
    let lastCity = "";

    const app = new App({ name: "Weather Forecast App", version: "1.0.0" });

    // Called by the host when the tool result arrives (initial render) or when
    // a Refresh-triggered tools/call completes.
    app.ontoolresult = (result) => {
      try {
        const text = result.content?.find((c) => c.type === "text")?.text ?? "{}";
        const data = JSON.parse(text);
        lastCity = data.city ?? lastCity;
        cityEl.textContent = data.city ?? "Unknown";
        tempEl.textContent = `${data.temp_c}°C`;
        conditionEl.textContent = data.condition ?? "";
        cardEl.classList.add("visible");
        statusEl.textContent = "Connected via postMessage JSON-RPC.";
        refreshBtn.disabled = false;
      } catch {
        statusEl.textContent = "Error parsing result.";
      }
    };

    // Refresh button drives a tools/call back over postMessage to the MCP server,
    // relayed through the host. No direct network call from the iframe.
    refreshBtn.addEventListener("click", async () => {
      refreshBtn.disabled = true;
      statusEl.textContent = "Calling tools/call via postMessage...";
      try {
        const result = await app.callServerTool({
          name: "get_forecast",
          arguments: { city: lastCity },
        });
        app.ontoolresult(result);
      } catch (err) {
        statusEl.textContent = `Error: ${err.message}`;
        refreshBtn.disabled = false;
      }
    });

    // Handshake: ui/initialize -> ui/notifications/initialized.
    // The host won't route tool results or relay tools/call until this completes.
    app.connect().then(() => {
      statusEl.textContent = "Handshake complete. Waiting for tool result...";
    }).catch((err) => {
      statusEl.textContent = `Connection failed: ${err.message}`;
    });
  </script>
</body>
</html>
